New 2023 Pleasure-Way REKON Std. Model

Motor Home Class B - Diesel

Stock #GN33346

Gananoque

From $941 bi weekly, includes taxes and fees O.A.C. 8.99% 60 Month/180 Amortization; Alternative Terms Available

1 of 6

Sleeps 2
Murphy Bed

19ft Long

See All Specs

Specifications

Sleeps	2	Length	19 ft 5 in
Ext Width	7 ft 1 in	Ext Height	9 ft 4 in
Int Height	6 ft 3 in	Exterior Color	Selenite
GVWR	9050 lbs	Cargo Capacity	1650 lbs
Fresh Water Capacity	40 gals	Grey Water Capacity	10 gals
Tire Size	245/75R16	Furnace BTU	11500 btu
Fuel Type	Diesel	Engine	3.0L V6
Chassis	Mercedes-Benz Sprinter 2500 4X4	Horsepower	188 hp
Fuel Capacity	24.5 gals	Wheelbase	144 in
Available Beds	Murphy Bed System	Torque	325 ft-lb
Refrigerator Type	Truma Top Loading Fridge/Freezer	Refrigerator Size	2.1 cu ft
Cooktop Burners	1	Number of Awnings	1
LP Tank Capacity	20 lbs	Water Heater Type	Truma AquaGo Comfort Plus Instant
Awning Info	Power w/LED Lights	Gross Combined Weight	13930 lbs
Shower Type	Wet/Bath Shower	Electrical Service	30 amp
VIN	W1W4EBVYXMP396808

Description

Pleasure-Way REKON 4X4 Class B diesel motorhome Std. Model highlights:

124 Cu. Ft. Garage Storage Area
Removable Murphy Bed System
Private Wet Bath/Gear Locker
Lagun Table Mount System
L-Track Tie Down System
11" Ground Clearance

Outdoor enthusiasts will love all that this adventure van has to offer to be able to drive on any terrain! And the interior features are just as impressive with the Murphy bed system with a 70 x 72" rear bed that easily folds down to sleep at night and leaves 54 cubic feet of garage storage below. You even have the choice to remove one of the sides to the bed to give yourself more living space when traveling solo, and by removing the driver side single bed cushions, this area becomes a workstation for kitchen prep. You can stay refreshed using the multi-function wet bath/gear locker which gives you a 5-gallon cassette toilet, handheld showerhead, a ducted heat vent for drying, and a removable shelf and closet rod storage system. You can also dine at the Lagun table while sitting on the driver and passenger seats that swivel to face the rear.

With the REKON 4X4 Class B diesel motorhome by Pleasure-Way, uncharted terrain is what you will seek! When over-landing and boon-docking, you will have a 40-gallon fresh water tank, four 100Ah Eco-Ion Earth Smart lithium (LiFePO4) coach batteries, a 400W solar panel package, and a Xantrex 2000W pure-sine wave inverter to keep you supplied with water and power for longer periods of time. The 3M Thinsulate insulation is used throughout the interior to reduce exterior noise and offer a superior weather seal, plus the Truma VarioHeat furnace is ducted for better heat dispersion and warmth during the cooler traveling months. This and more features are what make the REKON a true four-seasons RV. The interior is just as impressive with plenty of headroom, soft cargo nets for storage, a durable workstation to be utilized various ways, a Truma AquaGo Comfort Plus water heater and more. Start your 4X4 adventure today!

Features

Standard Features

Interior

Removable murphy bed system: 70" x 72"
Lagun table mount system w/ 360° swivel tabletop
Flip-down workstation (driver’s seat)
Privacy/sun shades for windshield & cab doors
Side and rear door roll-up screens
Blum® cabinet hinges
Flush-mount laminate cabinet doors
Laminate-wrapped kitchen & wall partitions
Premium vinyl flooring
Vinyl soft touch headliner
3M Thinsulate™ insulation
Fire extinguisher
LP, CO & Smoke detectors

Galley

2.1 cu. ft. top-loading Truma 12V / 110 portable fridge/freezer (holds 60L or 96 cans)
Portable 1-burner induction stove
13" x 11" stainless steel sink
High-arc, single-handle faucet
Large storage drawer under fridge w/ soft close
72" x 22.5" fold-down garage workstation
King StarBoard® marine-grade polymer surfaces

Bathroom

Private enclosed wet bath w/ shower
Shower curtain
Handheld showerhead
5 Gal. Thetford cassette toilet w/ swiveling bowl
Flexible shelving system w/ removable closet rods
Ducted heat

Electrical

Multiplex wiring
Dimmable LED lighting
Dual 10-inch touchscreen control panels
4 x 100Ah Eco-Ion Earth Smart Lithium (LiFePO4) coach batteries
400-Watt solar panel package
Go Power!® MPPT solar controller
Xantrex™ 2000-Watt Pure-sine wave inverter
Mastervolt Mac Plus DC-DC converter
80-amp lithium charger
12-volt coach battery disconnect
Charge line disconnect (solar and alternator)
30-amp power cord
USB charging ports
12V auxiliary power outlet
7 x 110-120V power outlets
AC distribution panel
DC load center

Touchscreen Control Panel

10-inch full-color display
Coach battery state-of-charge meter
Coach battery temperature gauge
Estimated time until full charge read-out
Remaining runtime for DC power read-out
Real-time 12-volt net loss/gain amperage meter
Solar charger controls and monitoring
Dimmable LED light banks
Tank level monitoring for fresh water
Climate control center w/ thermostat
Truma AquaGo® comfort plus water heater controls
Water pump, awning and vent controls
DC electrical system diagnostics

Exterior

400-Watt solar panel package
LED perimeter lighting (4 lights)
Power awning w/ LED lights
Exterior shower w/ handheld wand
110-120 volt power outlet
Utility center (LP switch, 30-amp power outlet, city water connection)
Black Rhino Havasu rims
Toyo all-terrain tires: 245/75R16
Tubular aluminum running boards
Undermount spare tire

Heating, Ventilation, & Cooling

Truma VarioHeat 11,500 BTU furnace
Dual bi-directional Fan-tastic Vent fans w/ rain sensor

Plumbing & Liquid Propane Systems

Shurflo® automatic demand water system
Truma AquaGo® comfort plus instant water heater
Water heater bypass valve
Interior fresh water tank with ducted heat
Fresh water tank level monitoring
No exterior water lines or tanks
Four season coach
LP BBQ quick connect
Removable LP tank: 20 lbs. / 17.8 L

Rear Seating Area

Bed up garage storage area: 124 cu. ft.
Bed down garage storage area: 52 cu. ft.
Garage storage lighting
L-track tie-down system
Expansive cargo net storage system

Chassis

Chassis Model - Mercedes-Benz Sprinter 2500 4x4
Engine - 3.0 L V6 Diesel
HP Rating - 188 HP
Torque Rating - 325 ft-lb
Wheelbase - 144"
Transmission - 7-speed automatic
Fuel Type - Diesel
Braking System - 4-wheel Disc brakes w/ ABS
Stability and Traction - Adaptive electronic
Tires - 245/75R/16 Toyo all-terrain
Alternator - 14V 220A
Chassis Battery - 12V 100Ah
Hitch and Wiring - 7-pin wiring connector

Cab Conveniences

MBUX Multimedia System w/ 10" Touchscreen
- Navigation
- Bluetooth® connectivity w/ audio streaming
- “Hey Mercedes” voice control
- Smartphone integration w/ hands-free function
- Multimedia interface w/ USB-C ports
Driver and passenger swivel seats
360 degree rear view camera system
Keyless ignition
Air conditioning
Power windows, door locks and mirrors
Tilt / telescopic steering wheel
Chassis battery quick-disconnect
Overhead control panel w/ 2 reading lights

Safety

Airbags – driver and passenger
Distronic Plus® Adaptive Cruise Control
Drive Away Assist
Active Brake Assist
Active Distance Assist Distronic
Traffic Sign Assist
Attention Assist
Active Lane Keeping Assist
Blind Spot Assist
Crosswind Assist
Tire repair kit w/ air compressor and repair liquid
Locking fuel fill
Undermount spare tire

See us for a complete list of features and available options.

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Excellent Customer Service
The business is very upbeat and staff are friendly. Several asked if they could help me when in the showroom. Paul was very professional, answered my questions making the purchase very pleasant. A special thanks to Ken in service who took his time explaining the ins and outs of the trailer, especially

Terry
Excellent Customer Service
We'd like to say that our experience dealing with Hiemstra Trailer Sales was very positive. First, we were happy that we were able to find the model of RV we were looking for and it was shown in a clean and prepared condition. All our questions were answered or resourced for us promptly and a test drive

Diane
OUTSTANDING SERVICE WITH CORY AND SHAUN
we had an emergency brake issue on oir trailer and these guys stepped up and went over and above to help us right away and get on our way. It was so wonderful of them to go get the parts and fix it within an hour. Pricing was reasonable and they did nt sell us anything we didnt require. It was

Richard from ON

We are here to help, call us at
613-382-4400 or Contact Us

We are here to help!

613-382-4400
Contact Us
Contact Sales

1000 Islands RV Centre Inc. is not responsible for any misprints, typos, or errors found in our website pages. Any price listed (Non Motorized RV) excludes sales tax, registration tags, delivery fees and freight. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @613-382-4400 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available. Payments DO NOT include Taxes, License Fee or Admin Fee

New 2023 Pleasure-Way REKON Std. Model

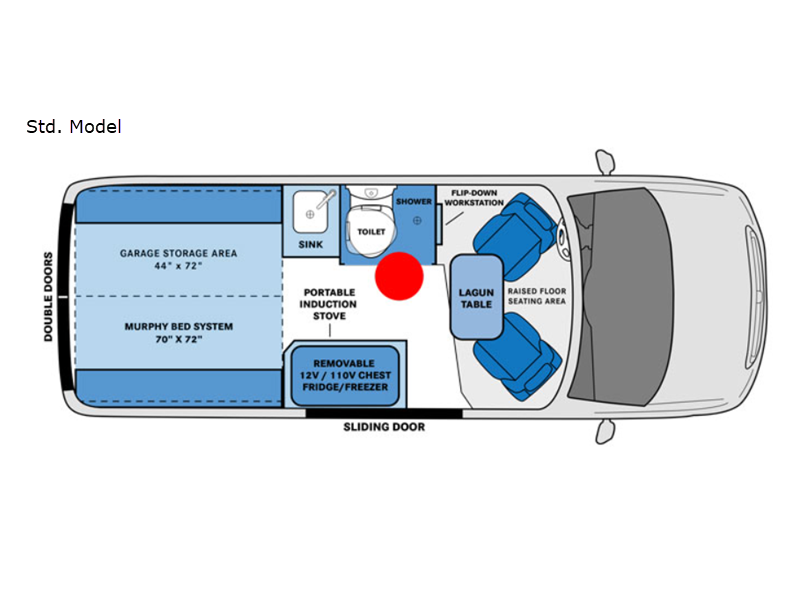

Std. Model Floorplan
